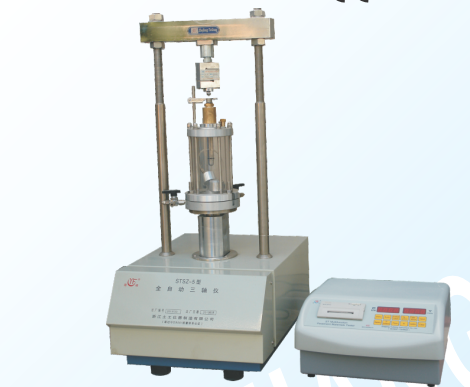

Feature:
Controlled by singlechip, data setting of
confining pressure and backpressure is
by keyboard input., elavation of main frame
is controlled. Main frame is driven by servo
motor, and shearing rate is variable.
Parameters:
1. Axial force: 0-10KN, measurement
accuracy: ±1%
2. Shear rate: 0.001-2.4mm/min
3. Specimen size: Φ39.1×80mm
4. Confining pressure: 0-1Mpa
5. Backpressure: 0-1Mpa
6. Aperture pressure: 0-1Mpa
7. Volume change: 0-50ml
Features: computer control, curves and
test reports can be printed.

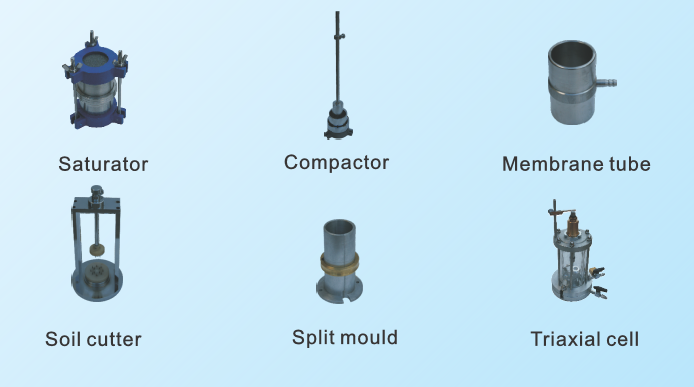

Accessories
