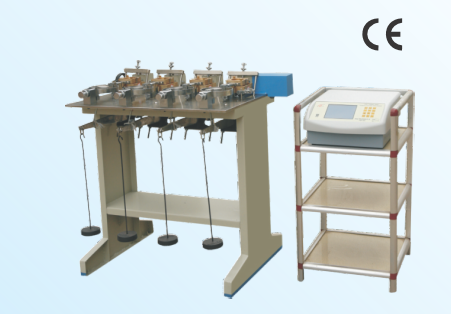

STSJ-5 Intelligent Electric Tetragenous Direct Shear Testing Apparatus

RATING

STSJ-5 Intelligent Electric Tetragenous Direct Shear Testing Apparatus

Availability : In Stock
Category:

Application: This apparatus is used to test
resisting shear strength of soil specimen. It
usually adopts four specimens under the
different vertical pressure exerted on the
specimens to obtain shear stress when the
specimen is destroyed

Specification:
Area of soil sample:30cm2
Lever ratio:1:12
Vertical Loading: 50,100,200,300,400(Kpa)
Max. horizontal loading: 1.2KN
Shear rate: 5, 2.4, 1.5, 1, 0.8, 0.02, 0.01mm/min
4 specimens in the same test
Working voltage: AC220V
Measurement: 1160x900x1160mm(main frame),
490x490x960mm(controller), weight: 235kg
Features: Stainless steel working table, stepping
motor as pushing mechanism, high precision, low
noise, MCU control, variable speed displayed by
the controller, easy to operate
