Use：
It is suitable for doing testing experiments
such as the tensile, compression, bending and
shear testing for all kinds of metal materials and
nonmetal materials such as plastic, concrete,
cement and so on.

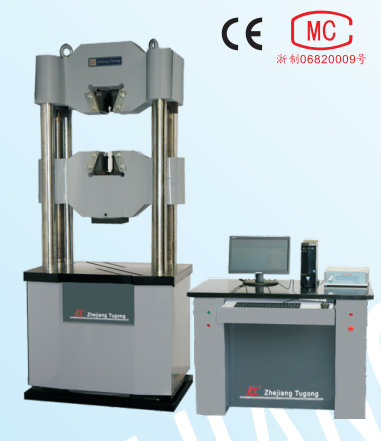

The oil cylinder is set on the bottom in the
machine, and with double space frames, the test
space can be adjusted automatically. The control
unit is composed of computer and control system,
it process stress, strain and displacement control
modes, the test data can be stored at will, and the
data and curves can be reanalyzed, part amplified
and data re-edition, test conditions (specimen,
measurement) are programmable, all the mechanical
properties can be obtained automatically, and print
whole test report and curve.

Standard:
It accords with the relative requirements of ISO, ASTM, JIN, GB and many other testing methods.
EN10002-1, ISO 6892, ASTM E8, ASTM C39, ASTM F606, SAE J429, CE Compliant

Feature:
These frames feature are dual spaces, so users can quickly change between tension and compression
testing without having to remove heavy fixtures. Control console with integrated hydraulic power pack,
precise loading regulator and unloading valves, Extra-length screws and columns, with an adjustable
upper crosshead, to increase the available test space for longer test samples. Semi-open front hydraulic
wedge clamps for easier loading and rapid loading and unloading of specimens.

Accessories:
Main frame; Control console; Controller and sensor; Computer and software; Hydraulic oil pipe and
control button box; Sample jaw three sets; Bend support saddle; Bend pressure energy; Spheric
compression plate; Lower compression plate; Top board; Ground screw and nut; Inner hexagon
spanner; Double offset ring spanner; Other accessories full sets

Specification: WAW-2000B WAW-1000B WAW-600B WAW-300B WAW-100B
