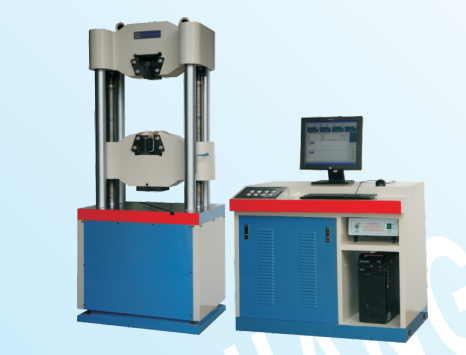

This machine used to do tension test of
steel stranded wire, it can used to perform
tension, compression, bend, shear test of
metal and non-metal material. Oil cylinder
of machine is underneath type, can free
adjust testing room, automatic hydraulic
clamp system, four column of main frame
structure can be adjustable. Use import high
quality electronic parts and components for
production. Windows platform software.
It has the feature such as automatic calibrate
load, distortion, automatic switch measuring
range, automatic stock test condition, test result,
automatic count Fm, ReL, ReH, RP0.2, RP0.05,
Rm and elastic modulus E et.. It has the function
of dynamic display test data and curve when test,
data edition, browse test curve, magnification,
superposition, comparison et., can print complete
test report and test curve.
Max. testing power:2000KN,1000KN,600KN
Testing range:0–1000KN,0–600KN
Error:<±1%
Max. tension distance:1000mm
Piston distance:250mm
Working voltage:AC380V
Power of oil pump motor:2.0KW,1.5KW
Features:
1. 4 upright posts, hard chromeplated, easy installation of hydraulic jaw, tension fracture
position in the middle of specimen.
2. With high quality parts, imported motor, thick steel column, plates and beam
3. Noncorrosion column and screw poles to ensure long time application
4. Steady working
Specification: WAW-1000B WAW-600B
Equip special steel stranded wire extensometer,
its precision is high, precision is ±0.5%, scale
distance is 500mm, measuring range is 0-50mm
Equip with special long type clamp, automatic
clamp well by hydraulic system, break point is in
the center of specimen not in the end.
