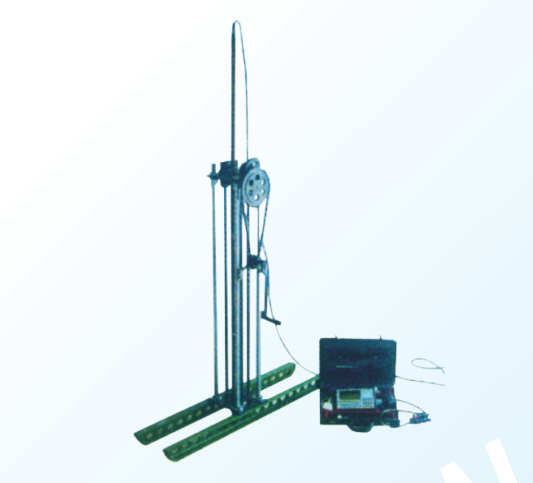

Application: This machine is used to perform
static penetration test, and vane test together
with four-bladed vane shear testing apparatus.
It’s convenient in data exchange. The machine is
light, easy to operate, with simple structure and
stable performance. No need to be connected to
external power.
1. Penetration capacity: 20-30KN
2. Penetration speed: 0.8-1.2m/min
3. Winding speed: 4-5m/min
4. Diameter of probe rod: 25-28mm
5. Adapt probe: 10cm2
6. Four-bladed vane probe size: 50X100mm
(separately equiped)
7. Weight of total machine: 180kg
