General description

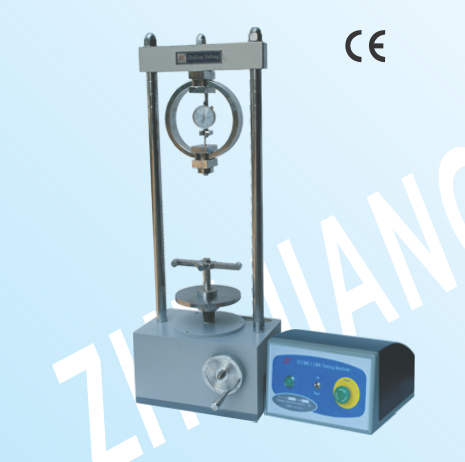

The machine features a rigid two-column
frame with upper crossbeam, which can
be adjusted in height and locked in position
with locknuts. The drive force is provided
by an linkage of motor, worm and worm wheel
housed in the base cabinet, which also
accommodates the motor and the electric
panel. Can operated both by motor and
manual handle.
Specification
1. Max. load: 30KN,50KN capacity.
2. Test speed: 1 mm/min (BS standard ) or 1.27 mm/min
(ASTM/EN standard)
3. Size of the penetration rod: Dia. 50×100mm
Packing:
Main frame(mm): 560×450×1080
Controller(mm):570×490×330
