Use:
It is suitable for doing testing experiments
such as the tensile, compression, bending
and shear testing for all kinds of metal materials
and nonmetal materials such as plastic, concrete,
cement and so on.
Standard:
It accords with the relative requirements of ISO,
ASTM, JIN, GB and many other testing methods.
EN10002-1, ISO 6892, ASTM E8, ASTM C39,
ASTM F606, SAE J429, CE Compliant.

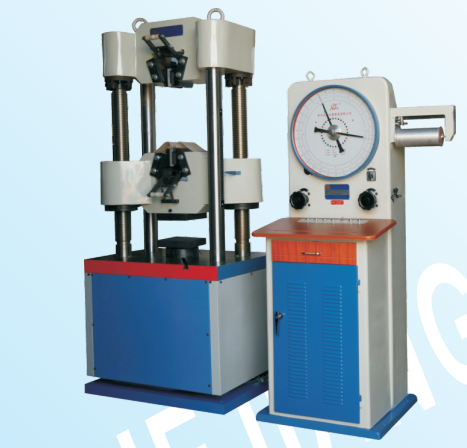

Feature:
These frames feature dual spaces so users can quickly change between tension and
compression testing without having to remove heavy fixtures. Control console with inte
grated digital meter, hydraulic power pack, precise electronic loading regulator and
unloading valves. Extra-length screws and columns, with an adjustable lower crosshead,
to increase the available test space for longer test samples. With digital displacement
transducer for the best positioning and measuring accuracy.
Accessories:
Main frame; Control console; Controller and sensor; Sample jaw three sets; Bend support
saddle; Bend pressure energy; Spheric compression plate; Lower compression plate;
Top board; Ground screw and nut;Inner hexagon spanner; wire power cord; O type gasket;
Cruciform screw driver; Double offset ring spanner; Other accessories full sets.
Specification: WA-2000B WA-1000B WA-600B WA-300B WA-100B
Main frame Parameter |
Main frame size | 740X580X2045mm | 900X630X2070mm | 900X630X2160mm |
Machine model | WA-300B | WA-600B | WA-1000B | |
Max. testing power | Technical Parameter |
300KN | 600KN | 1000KN |
Testing power Precision | grade 1 | |||
Max. tension distance | 620mm | 640mm | 700mm | |
Compress distance | 0-380mm | 0-450mm | 0-470mm | |
Clamp diameter of round specimen |
Φ0-32mm | Φ13-40mm | Φ20-60mm | |
Clamp thickness of flat specimen |
0-15mm | 0-30mm | 0-40mm | |
Clamp width of flat specimen |
80mm | |||
Size of compression plate | 160mmX160mm | 205mmX205mm | 205mmX205mm | |
Bending stick distance | 350mm | 500mm | 500mm | |
Bending stick width | 140mm | |||
Bending degree allowance | 100mm | 150mm | ||
Controller size | 620x560x1560mm | |||
Oil pump power | 1.5KW | |||
Distortion testing device | Staff | |||
Overload protection | 2-5% | |||
Weight | 1800kgs | 2300kgs | 3000kgs | |
Max. lift speed of testing board |
70mm/min |
