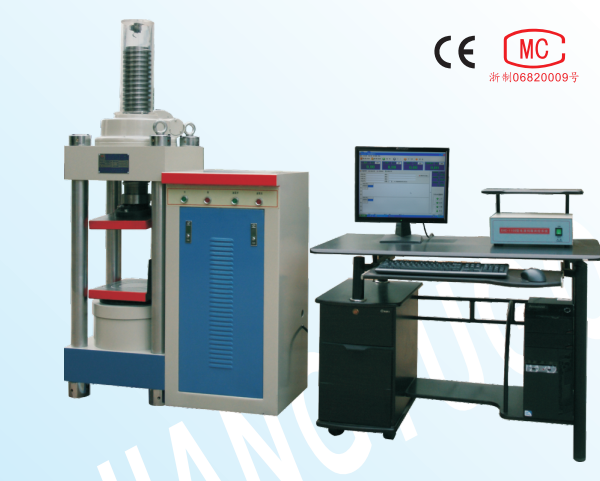

STYE-2000C/STYE-3000C Full Automatic Compression Testing Machine

RATING

STYE-2000C/STYE-3000C Full Automatic Compression Testing Machine

Availability : In Stock
Category:

Use
Computer controlled hydraulic servo compression testing machine is mainly used to test compression
strength of cement, concrete, rocks, brick. they also can perform shear test, anti-break test and elastic
modules test of concrete with special compression fixtures and measurement assembly.


Feature
Space adjusting, & test processes could be controlled by the software and the test result could be
transferred to the software in the computer for further analysis. It is the most advanced series in hydraulic
compression testing machines. It is widely used in different steel works, engineering areas, quality control
department, Universities and institutes as well as other areas and works.

Fully computer controlled testing process
Stable and reliable high intensity structure load frame
Real time display software will provide accurate track of testing process
Powerful multifunctional control software will provide more testing methods and
standards.
Overload protection will secure operators
Safe and reliable software interface and control. It is very easy to prevent mistake operation
during the test stage which will cause damage to the testing machine
Easy and fast to edit customized test reports in EXCEL format.


STYE-2000C
Specification:
Max. testing power: 2000KN
Measuring range: 0-2000KN
Relative indication error:
±1%
Max. distance between the up and down
bearing plates: 310mm
Max. piston stroke: 90mm
Diameter of the piston:
Φ250mm
Rated pressure of the hydraulic pump: 40Mpa
Power: AC220V
±5% 50Hz
Outside size: 950
×400×1560mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Net weight: about 850KGS
Noise:
80Db

STYE-3000C
Specification:
Max. testing power: 3000KN
Measuring range: 0-3000KN
Relative indication error:
±1%
Max. distance between the up and down
bearing plates: 380mm
Max. piston stroke: 90mm
Diameter of the piston:
Φ310mm
Rated pressure of the hydraulic pump: 40Mpa
Power: AC220V
±5% 50Hz
Outside size: 1120X620X2000mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Net weight: about 1650KGS
Noise:
80Db
